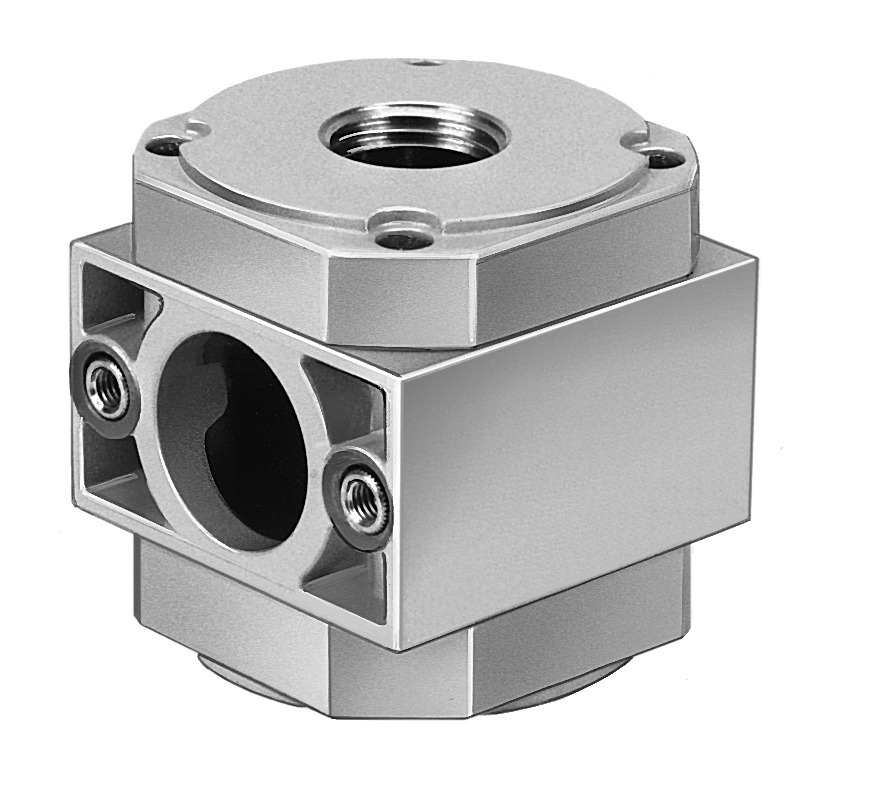

Branching module FRM-D-MIDI
Branching module
₹3232.00
Standard nominal flow rate in main flow direction 1->2
8200 l/min
Operating pressure
0 bar - 16 bar
Technical Data
Mounting positionoptional
DesignBranching module
Symbol00991510
Operating pressure0 MPa ... 1.6 MPa
Operating pressure0 bar ... 16 bar
Standard nominal flow rate in main flow direction 1->28200 l/min
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Inert gases
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-10 °C ... 60 °C
Air purity class at outputCompressed air to ISO 8573-1:2010 [7:-:-] Inert gases
Media temperature-10 °C ... 60 °C
Ambient temperature-10 °C ... 60 °C
Product weight382 g
Pneumatic connection, port 3G1/2
Pneumatic connection, port 4G1/4
Note on materialsRoHS-compliant
Material housingDie-cast aluminium
