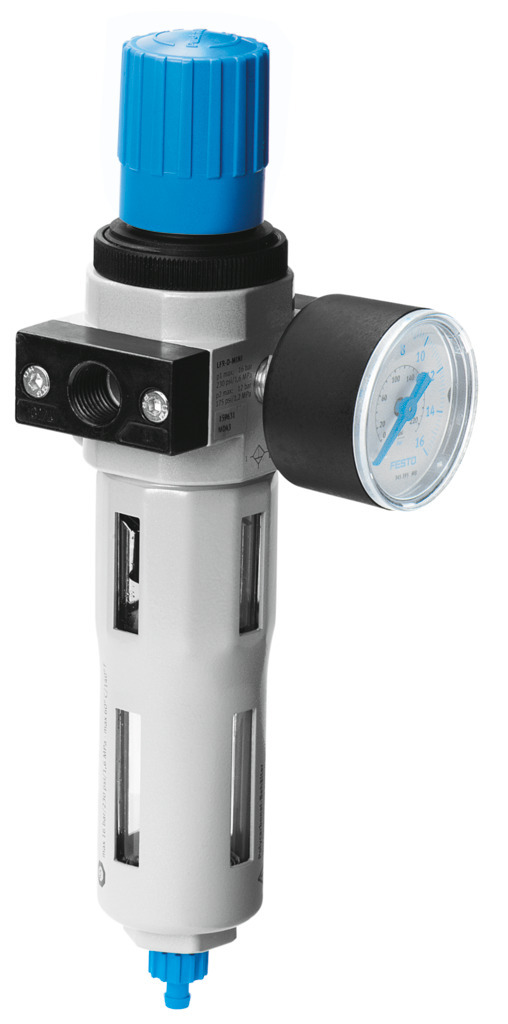

Filter regulator LFR-1/2-D-MIDI
Filter regulator
₹7800.00
Pneumatic connection, port 1
G1/2
Standard nominal flow rate (standardised to DIN 1343)
3400 l/min
Pressure regulation range
0.5 bar - 12 bar
Grade of filtration
40 µm
Technical Data
SizeMidi
SeriesD
Actuator lockRotary knob with detent
Mounting positionVertical +/-5°
Grade of filtration40 µm
Condensate drainManually rotating
DesignFilter regulator with pressure gauge
Max. condensate volume43 ml
Bowl guardMetal bowl guard

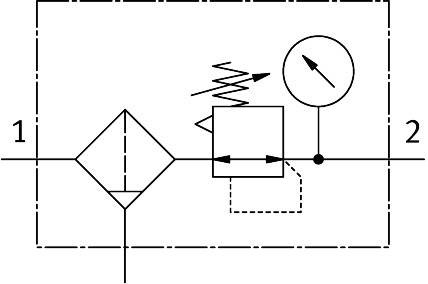

Symbol00991585
Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
Operating pressure1 bar ... 16 bar
Pressure regulation range0.5 bar ... 12 bar
Max. pressure hysteresis0.2 bar
Standard nominal flow rate (standardised to DIN 1343)3400 l/min
Operating mediumCompressed air to ISO 8573-1:2010 [-:9:-] Inert gases
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-10 °C ... 60 °C
Air purity class at outputCompressed air to ISO 8573-1:2010 [7:8:4] Inert gases
Media temperature-10 °C ... 60 °C
Ambient temperature-10 °C ... 60 °C
Product weight920 g
Type of mountingEither: In-line installation With accessories
Pneumatic connection, port 1G1/2
Pneumatic connection, port 2G1/2
Note on materialsRoHS-compliant
Material housingDie-cast zinc
Material bowlPC
