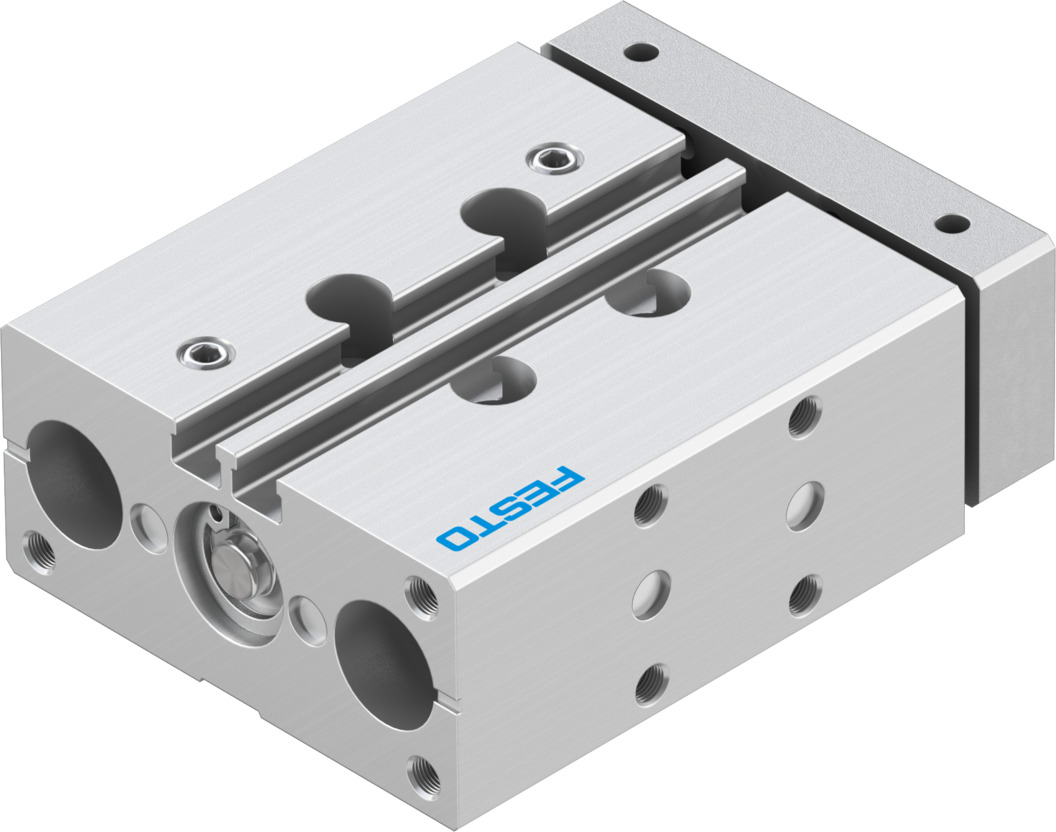

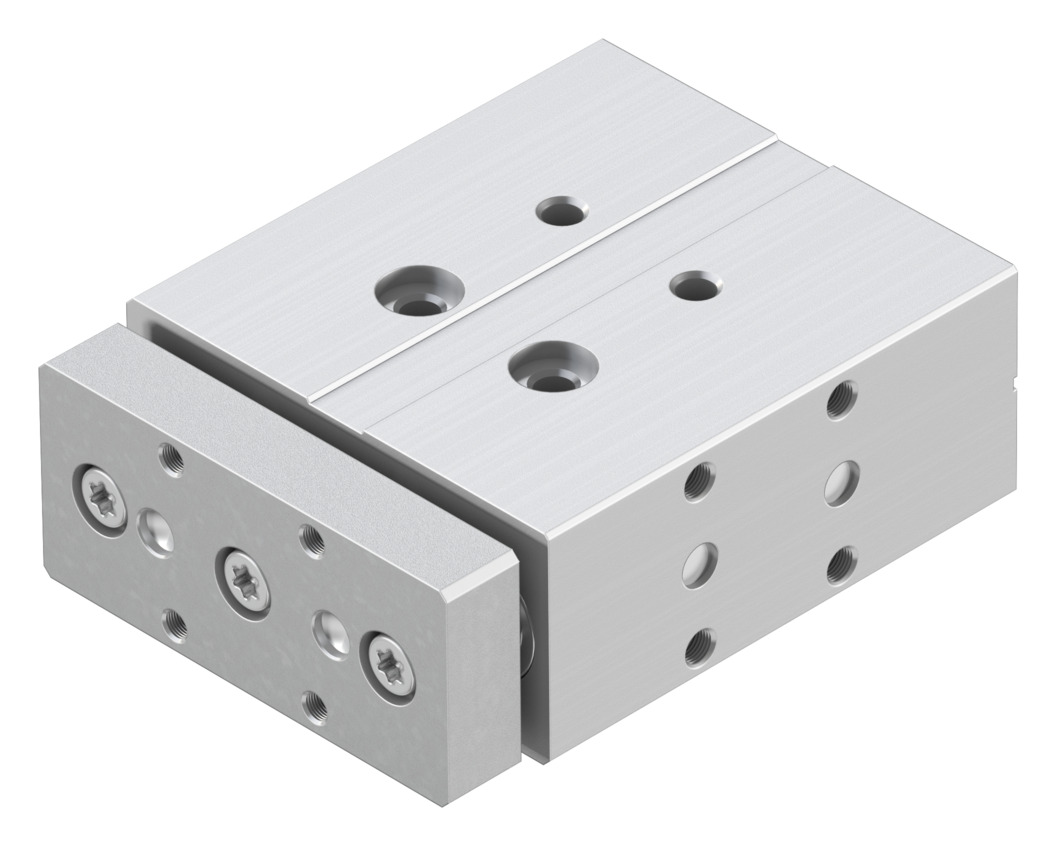

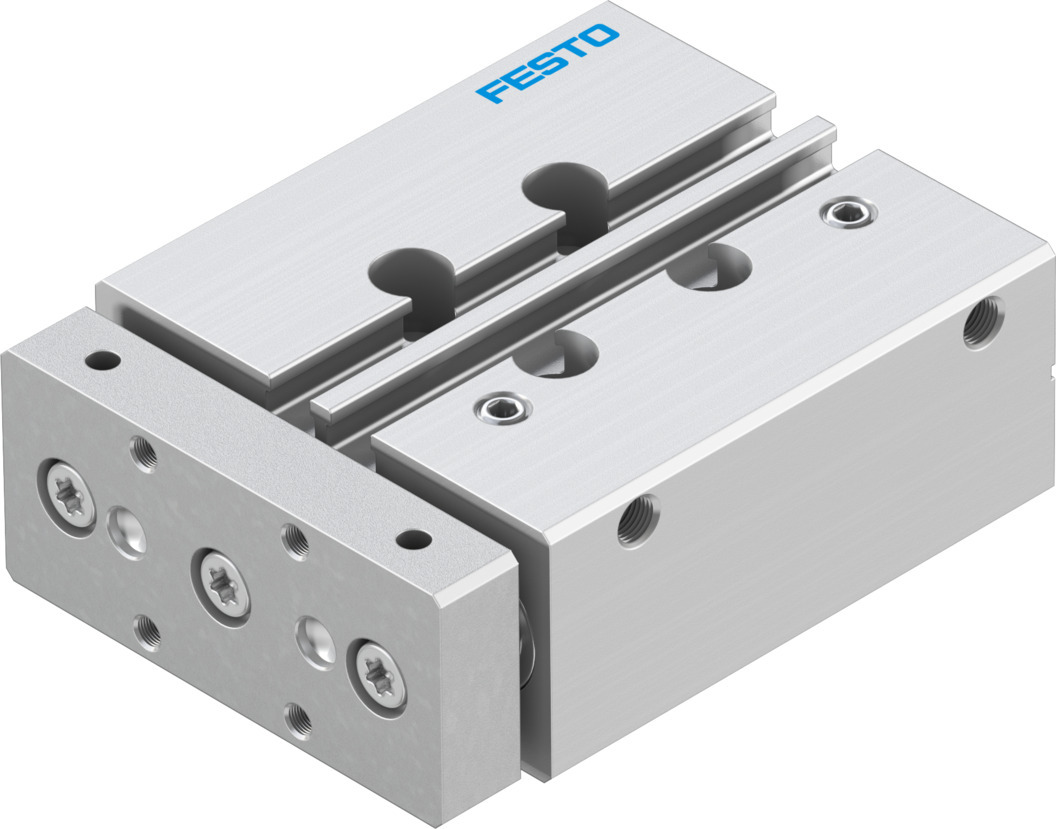

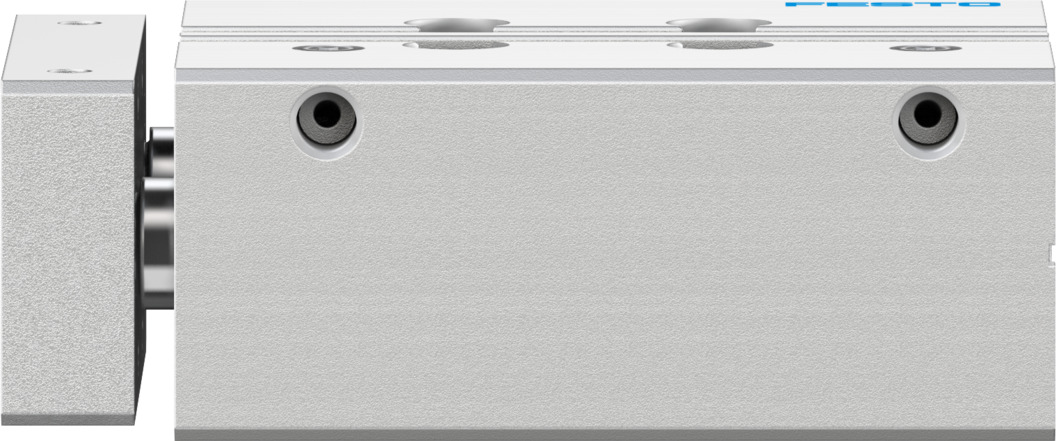

Piston diameter

12 mm

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke

68 N

Stroke

30 mm

Cushioning

Elastic cushioning rings/plates at both ends

Position detection

Via proximity switch

Technical Data

• Distance from centre of gravity of load to yoke plate xs25 mm

• Stroke30 mm

• Piston diameter12 mm

• Operating mode, drive unitYoke

• CushioningElastic cushioning rings/plates at both ends

• Mounting positionoptional

• GuidePlain-bearing guide

• DesignGuidance

• Position detectionVia proximity switch

• Symbol00991737

• Operating pressure0.2 MPa ... 1 MPa

• Operating pressure2 bar ... 10 bar

• Max. speed0.8 m/s

• Mode of operationDouble-acting

• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

• Corrosion resistance class CRC1 - Low corrosion stress

• LABS (PWIS) conformityVDMA24364-B1/B2-L

• Cleanroom classClass 7 according to ISO 14644-1

• Ambient temperature-20 °C ... 80 °C

• Impact energy in end positions0.07 J

• Max. force Fy240 N

• Max. force Fy static240 N

• Max. force Fz240 N

• Max. force Fz static240 N

• Max. moment Mx4.92 Nm

• Max. torque Mx static4.92 Nm

• Max. moment My2.06 Nm

• Max. torque My static2.06 Nm

• Max. moment Mz2.06 Nm

• Max. torque Mz static2.06 Nm

• Max. permissible torque load Mx as a function of stroke0.63 Nm

• Max. effective load dependent upon stroke at defined distance xs22 N

• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke51 N

• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke68 N

• Moving mass200 g

• Product weight435 g

• alternative connectionsSee product drawing

• Pneumatic connectionM5

• Note on materialsRoHS-compliant

• Material coverWrought aluminium alloy

• Material sealsNBR

• Material housingWrought aluminium alloy

• Material piston rodHigh-alloy stainless steel
