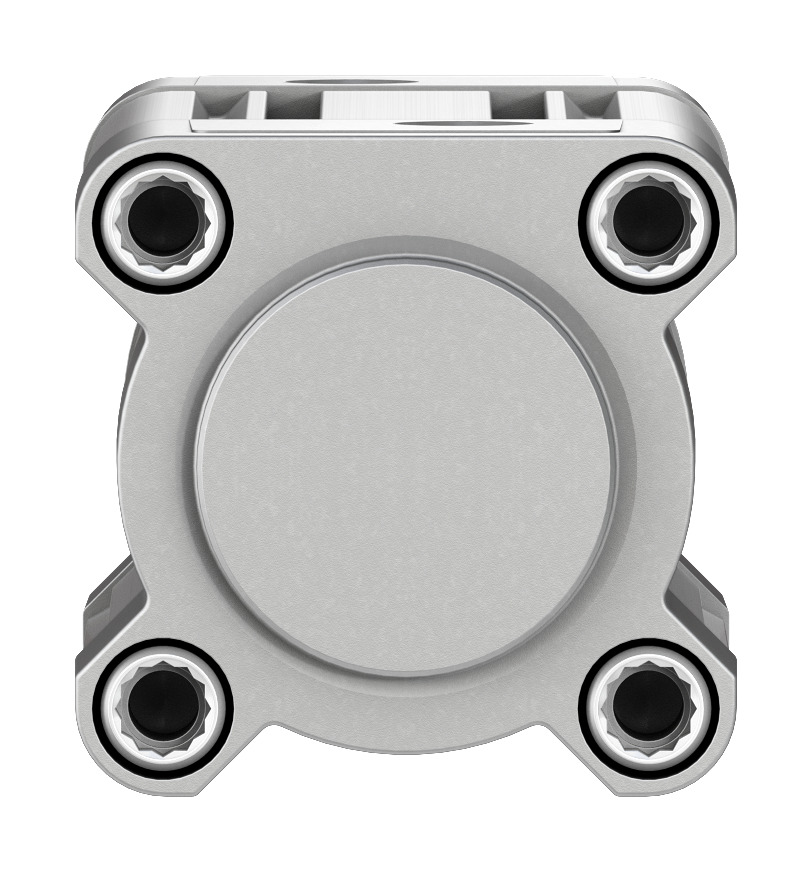

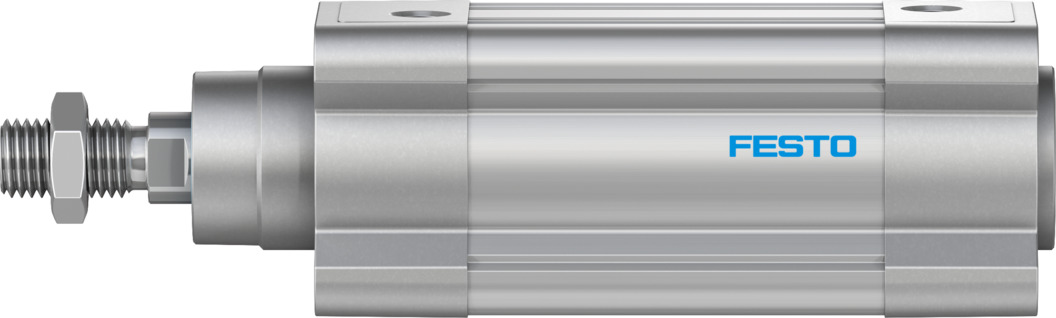

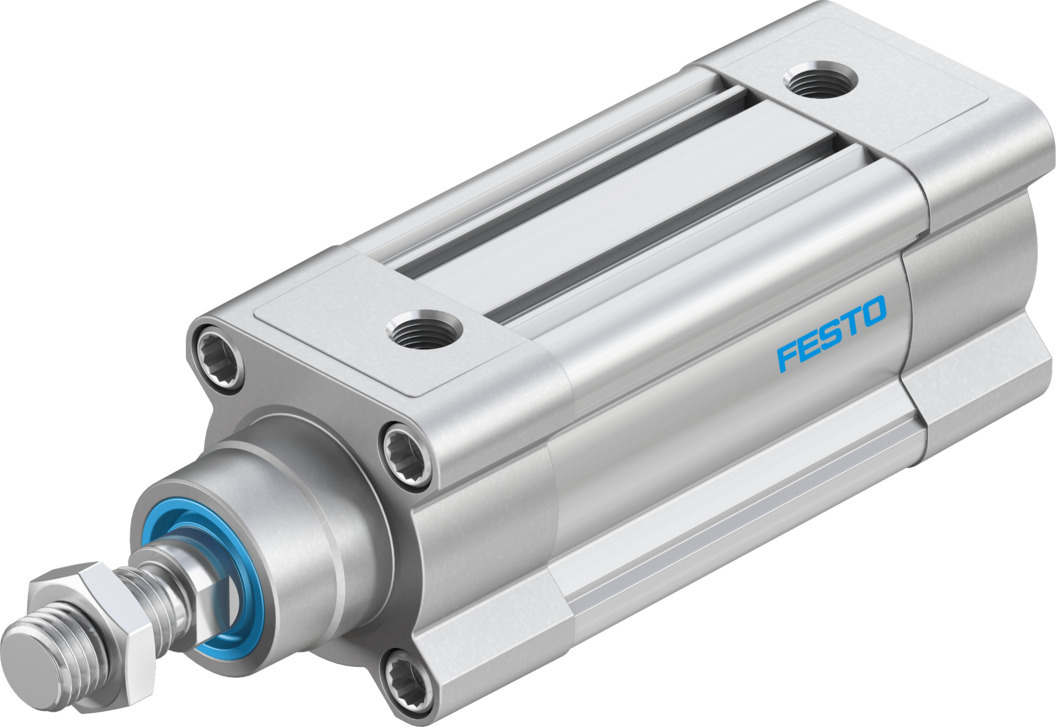

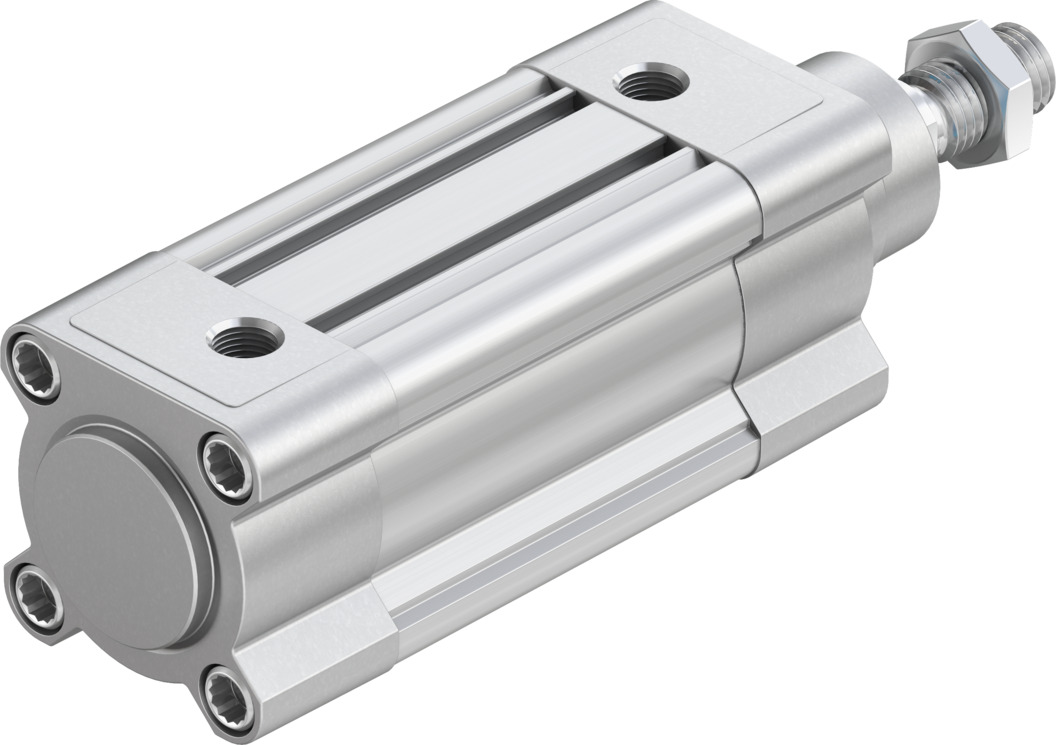

Mode of operation

Double-acting

Piston diameter

50 mm

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke

1178 N

Stroke

50 mm

Cushioning

Pneumatic cushioning, adjustable at both ends

Technical Data

• Stroke50 mm

• Piston diameter50 mm

• Piston rod threadM16x1.5

• CushioningPneumatic cushioning, adjustable at both ends

• Mounting positionoptional

• Conforms to standardISO 15552

• Piston-rod endMale thread

• DesignPiston Piston rod Profile barrel

• Position detectionVia proximity switch

• Symbol00991235

• VariantsPiston rod at one end

• Operating pressure0.04 MPa ... 1.2 MPa

• Operating pressure0.4 bar ... 12 bar

• Mode of operationDouble-acting

• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

• Corrosion resistance class CRC2 - Moderate corrosion stress

• LABS (PWIS) conformityVDMA24364-B1/B2-L

• Cleanroom classClass 6 according to ISO 14644-1

• Ambient temperature-20 °C ... 80 °C

• Impact energy in end positions1 J

• Cushioning length22 mm

• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke990 N

• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1178 N

• Moving mass490 g

• Moving mass for 0 mm stroke365 g

• Additional moving mass per 10 mm stroke25 g

• Product weight1470 g

• Basic weight for 0 mm stroke1190 g

• Additional weight per 10 mm stroke56 g

• Type of mountingEither: Via female thread With accessories

• Pneumatic connectionG1/4

• Note on materialsRoHS-compliant

• Material coverDie-cast aluminium, coated

• Material piston sealTPE-U(PU)

• Material pistonWrought aluminium alloy

• Material piston rodHigh-alloy steel

• Material piston rod wiperTPE-U(PU)

• Buffer seal materialTPE-U(PU)

• Cushioning boss materialPOM

• Material cylinder barrelSmooth-anodised wrought aluminium alloy

• Material nutGalvanised steel

• Material bearingPOM

• Material collar screwsGalvanised steel
