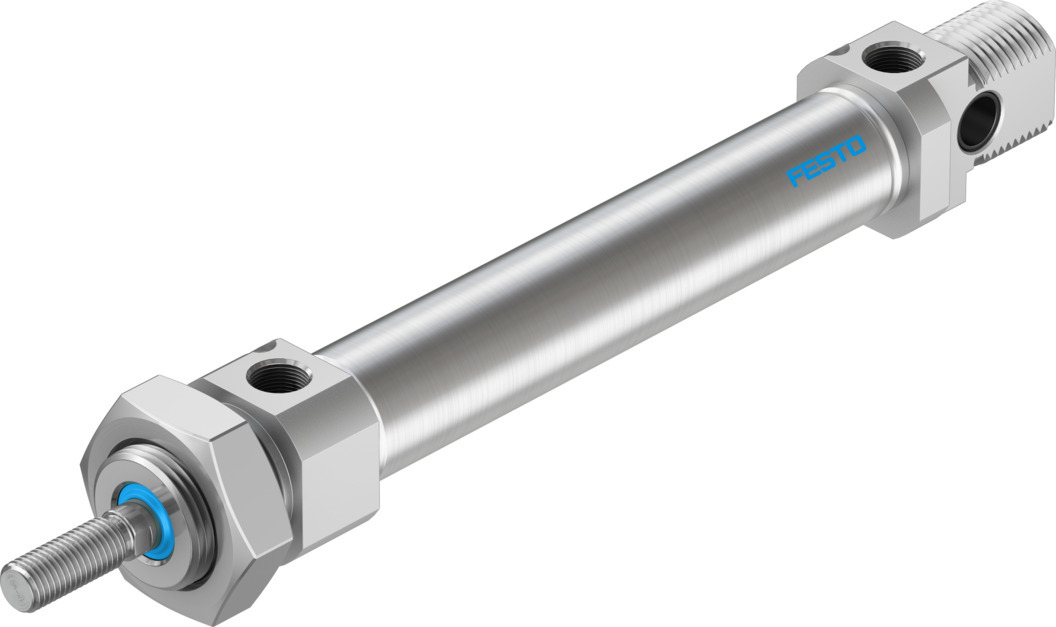

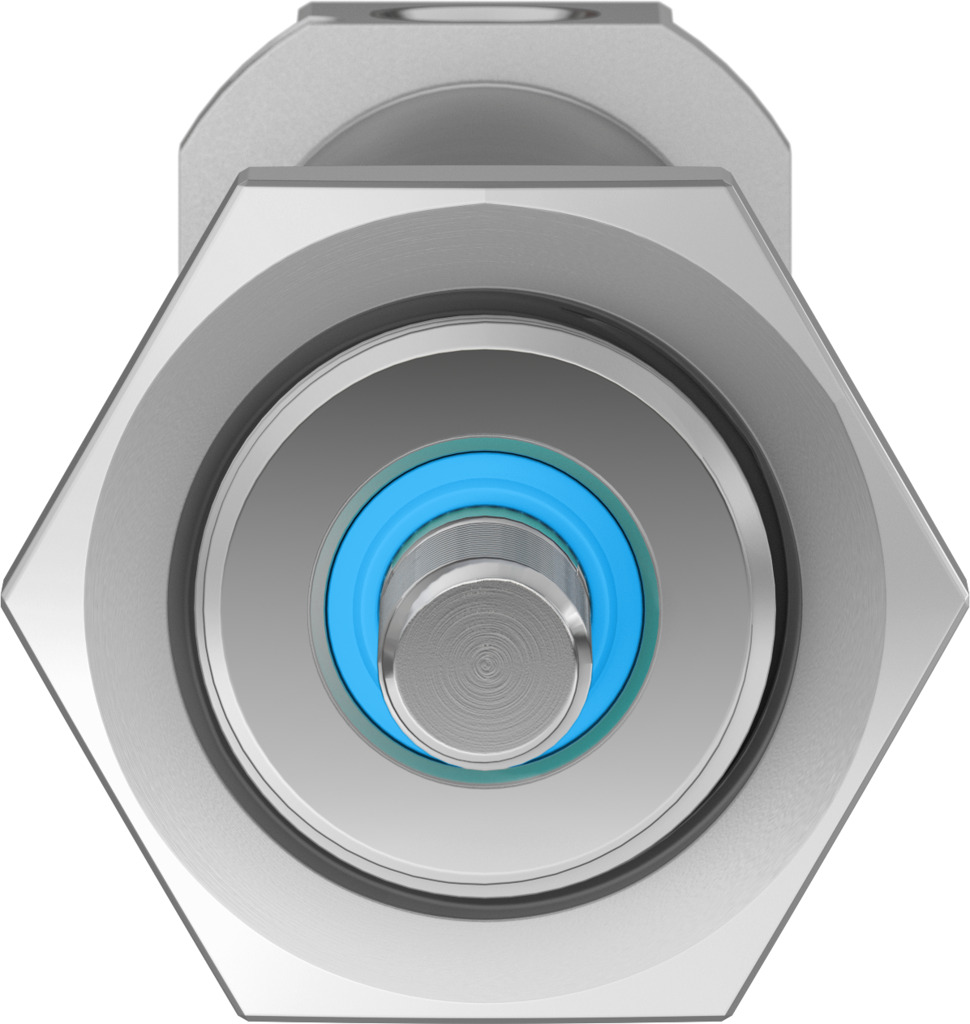

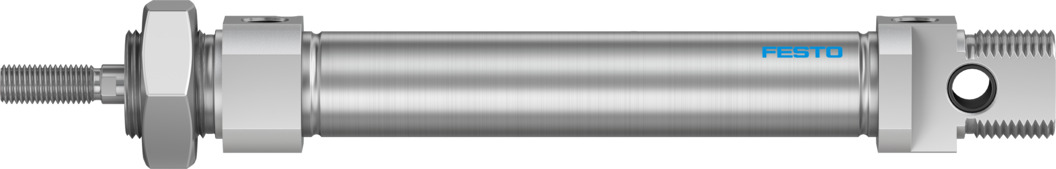

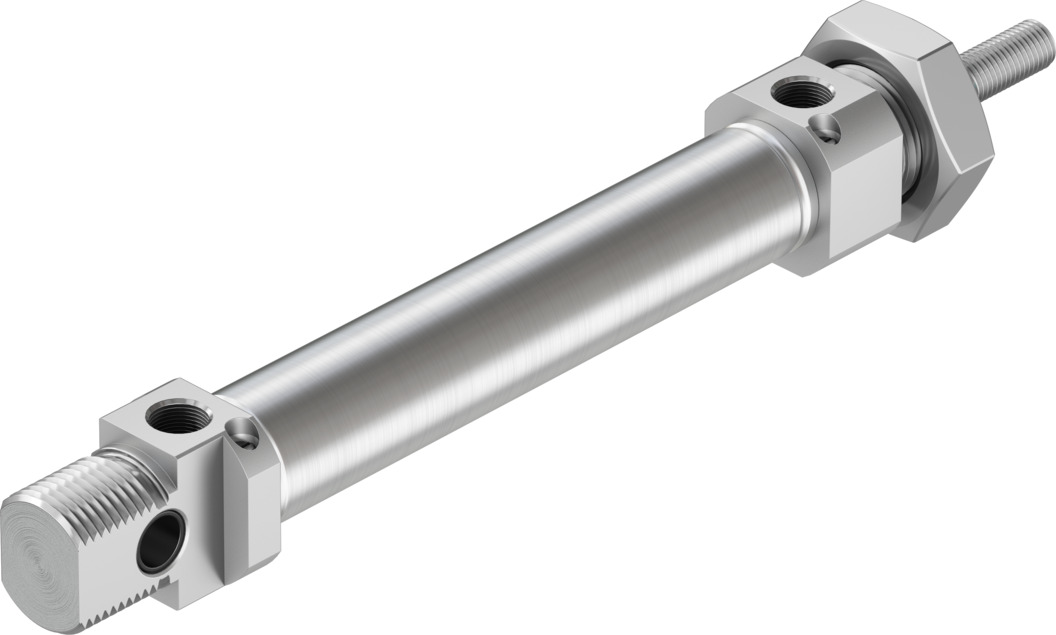

Mode of operation

Double-acting

Piston diameter

20 mm

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke

188.5 N

Stroke

80 mm

Cushioning

Pneumatic cushioning, adjustable at both ends

Technical Data

• Stroke80 mm

• Piston diameter20 mm

• Piston rod threadM8

• CushioningPneumatic cushioning, adjustable at both ends

• Mounting positionoptional

• Conforms to standardCETOP RP 52 P ISO 6432

• Piston-rod endMale thread

• DesignPiston Piston rod Cylinder barrel

• Position detectionVia proximity switch

• Symbol00991235

• VariantsPiston rod at one end

• Operating pressure0.1 MPa ... 1 MPa

• Operating pressure1 bar ... 10 bar

• Mode of operationDouble-acting

• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

• Corrosion resistance class CRC2 - Moderate corrosion stress

• LABS (PWIS) conformityVDMA24364-B1/B2-L

• Cleanroom classClass 6 according to ISO 14644-1

• Ambient temperature-20 °C ... 80 °C

• Impact energy in end positions0.2 J

• Cushioning length15 mm

• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke158.3 N

• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke188.5 N

• Moving mass for 0 mm stroke44 g

• Additional moving mass per 10 mm stroke4 g

• Basic weight for 0 mm stroke186.8 g

• Additional weight per 10 mm stroke7.2 g

• Type of mountingWith accessories

• Pneumatic connectionG1/8

• Note on materialsRoHS-compliant

• Material coverWrought aluminium alloy Colourless anodised

• Material sealsNBR TPE-U(PU)

• Material piston rodHigh-alloy stainless steel

• Material cylinder barrelHigh-alloy stainless steel
