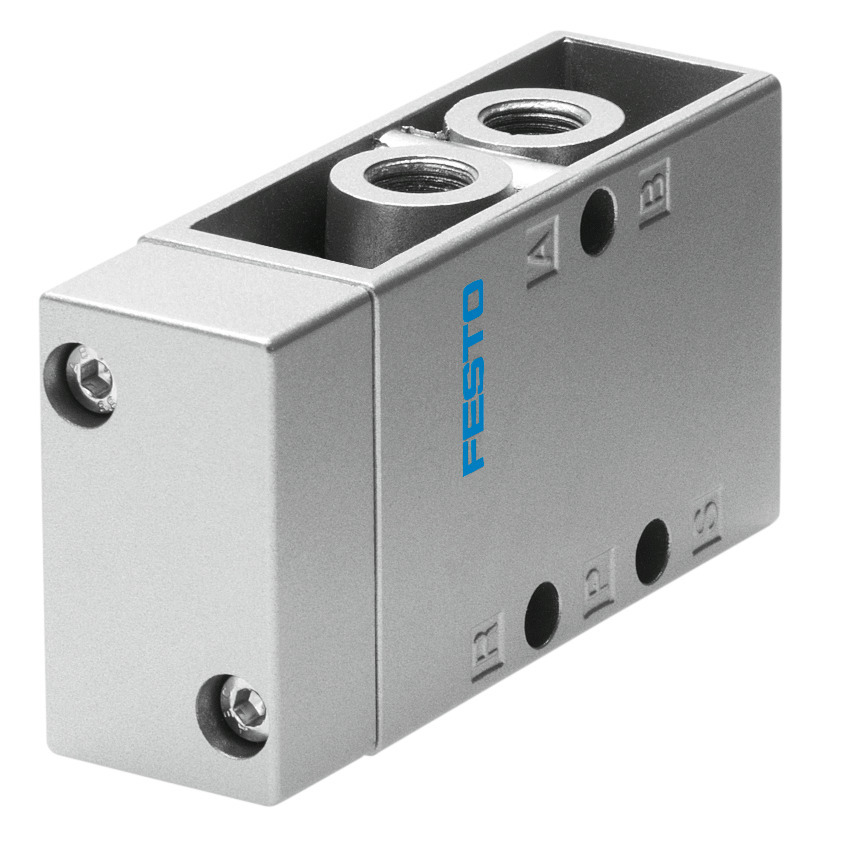

Technical Data

• Valve function5/2-way, monostable

• Type of actuationPneumatic

• Construction width30.5 mm

• Standard nominal flow rate (standardised to DIN 1343)800 l/min

• pneumatic working portG1/4

• Operating pressure0 MPa ... 0.8 MPa

• Operating pressure0 bar ... 8 bar

• DesignPoppet seat

• Type of resetMechanical spring

• Degree of protectionIP65

• Nominal size7 mm

• Grid dimension32 mm

• Exhaust-air functionWith flow control option

• Sealing principleSoft

• Mounting positionoptional

• Type of pilotingDirect

• Pilot air supplyExternal

• Flow directionNon-reversible

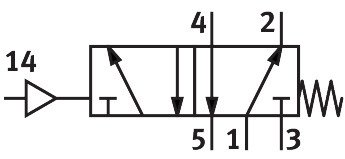

• Symbol00991001

• lapUnderlap

• Pilot pressure0.12 MPa ... 1 MPa

• Pilot pressure1.2 bar ... 10 bar

• Switching time off11 ms

• Switching time on7 ms

• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

• Corrosion resistance class CRC1 - Low corrosion stress

• LABS (PWIS) conformityVDMA24364-B1/B2-L

• Storage temperature-20 °C ... 60 °C

• Media temperature-10 °C ... 60 °C

• Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

• Ambient temperature-10 °C ... 60 °C

• Product weight220 g

• Type of mountingEither: On manifold rail With through-hole

• Pilot air port 14G1/8

• Pneumatic connection, port 1G1/4

• Pneumatic connection, port 2G1/4

• Pneumatic connection, port 3G1/4

• Pneumatic connection, port 4G1/4

• Pneumatic connection, port 5G1/4

• Note on materialsRoHS-compliant

• Material sealsNBR TPE-U(PU)

• Material housingDie-cast aluminium
