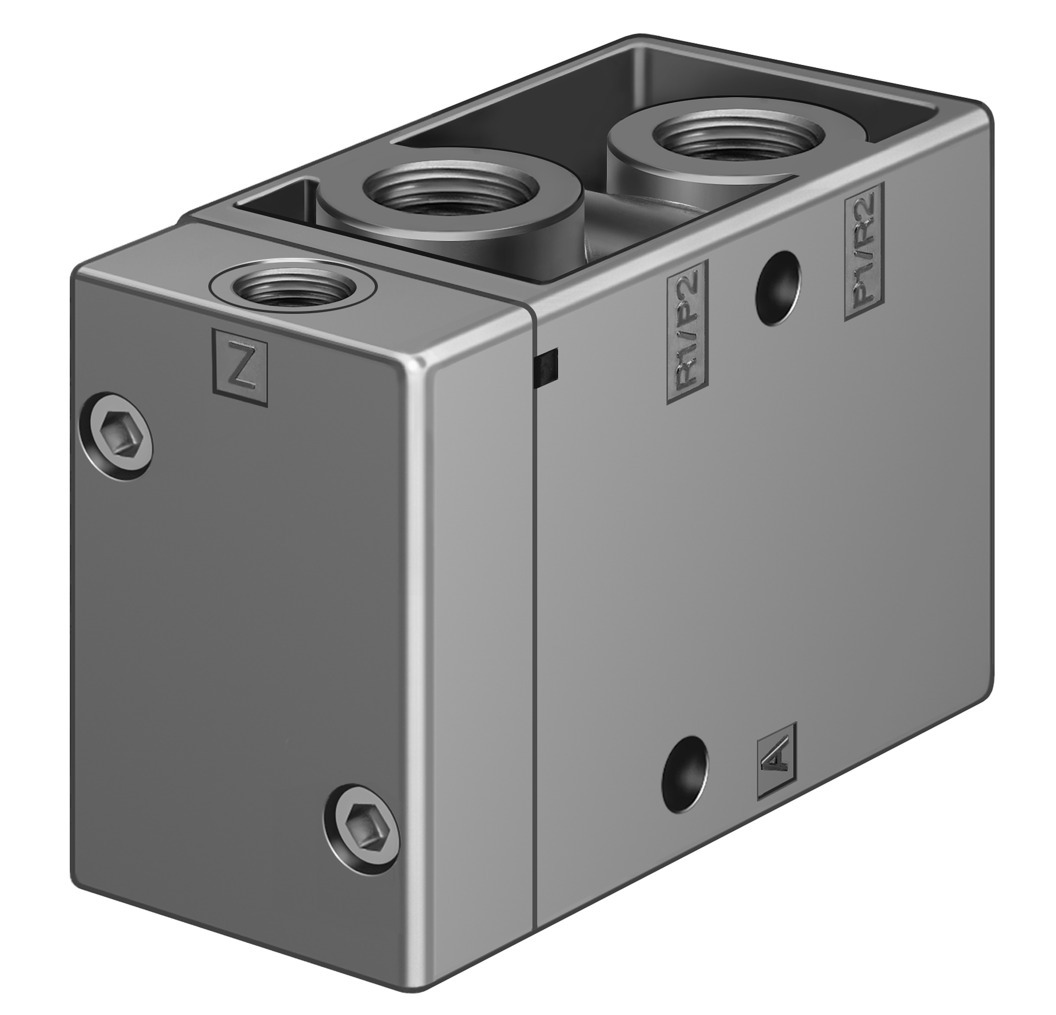

Technical Data

• Valve function3/2-way, monostable, open/closed

• Type of actuationPneumatic

• Construction width52 mm

• Standard nominal flow rate (standardised to DIN 1343)3700 l/min

• pneumatic working portG1/2

• Operating pressure-0.095 MPa ... 1 MPa

• Operating pressure-0.95 bar ... 10 bar

• DesignPoppet seat

• Type of resetMechanical spring

• Nominal size14 mm

• Grid dimension69 mm

• Exhaust-air functionWith flow control option

• Sealing principleSoft

• Mounting positionoptional

• Manual overrideNone

• Type of pilotingDirect

• Pilot air supplyExternal

• Flow directionReversible

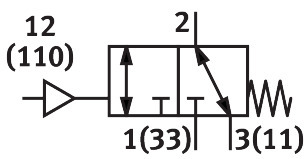

• Symbol00991030

• lapUnderlap

• Pilot pressure0.1 MPa ... 1 MPa

• Pilot pressure1 bar ... 10 bar

• b value0.3

• Switching time off30 ms

• Switching time on17 ms

• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

• Corrosion resistance class CRC1 - Low corrosion stress

• LABS (PWIS) conformityVDMA24364-B1/B2-L

• Storage temperature-20 °C ... 60 °C

• Media temperature-10 °C ... 60 °C

• Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

• Ambient temperature-10 °C ... 60 °C

• Product weight860 g

• Type of mountingEither: On manifold rail With through-hole

• Pilot air port 110G1/4

• Pilot air port 12G1/4

• Pneumatic connection, port 1G1/2

• Pneumatic connection, port 11G1/2

• Pneumatic connection, port 2G1/2

• Pneumatic connection, port 3G1/2

• Pneumatic port 33G1/2

• Note on materialsRoHS-compliant

• Material sealsNBR

• Material housingDie-cast aluminium
