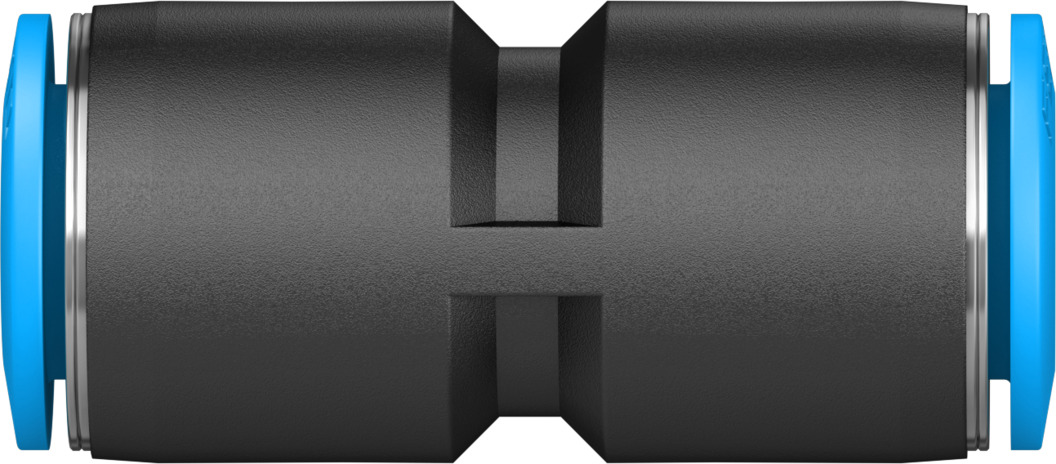

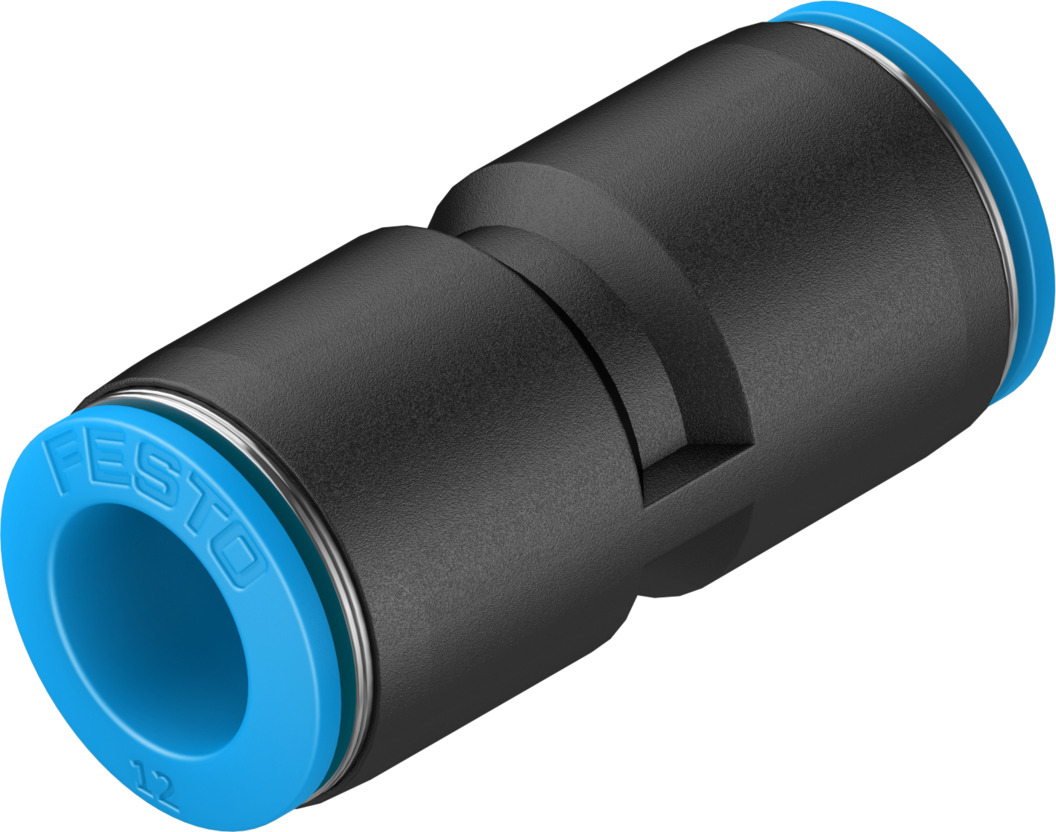

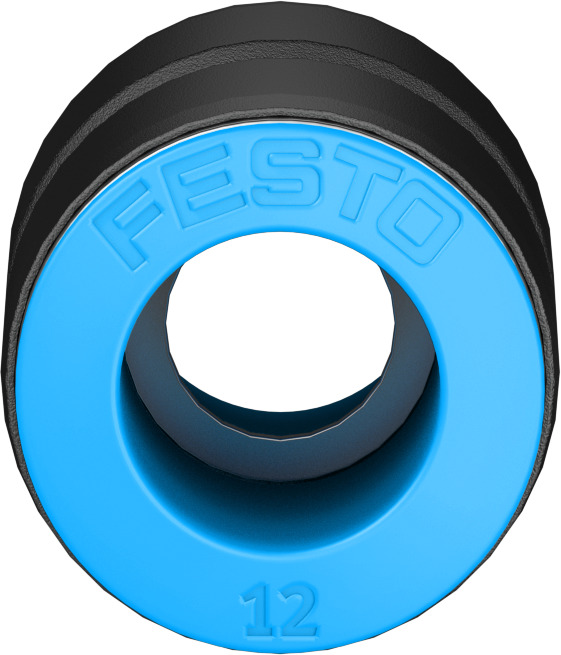

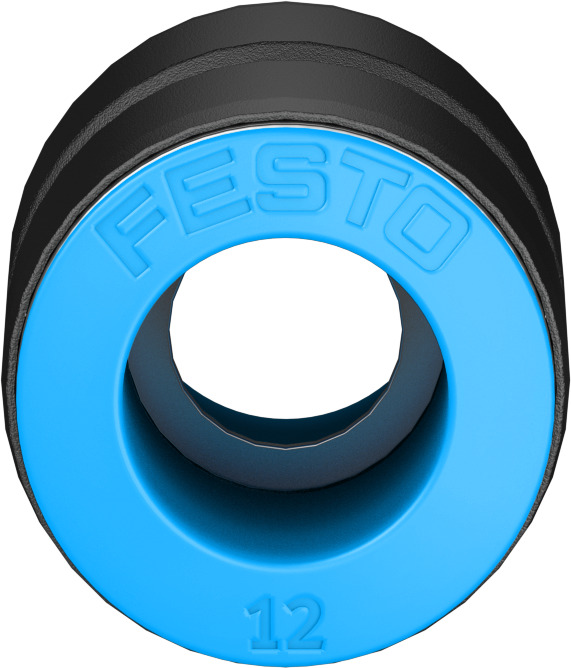

Push-in connector QS-12 153035
Push-in connector
₹400.00
Product information Terms of use for electronic documentation
Product information in brief
LifeTech Push-in-Fittings NPQO
Whether you want to equip your respirator, your anaesthetic device or need connection elements for your oxygen circuits – NPQO fittings and connectors
Product information in brief
PSI Tubing/fitting combination PUN-H/QS
Product information in brief
Product information in brief
Focus on food safety!
Product information in brief
Price-optimized for standard applications
Product information in brief
Tubing/fitting combination PAN/QS
Product information in brief
Tubing/threaded fitting combinations
From a single source
Program summary
Catalogue
Operating conditions and standards in pneumatics
Use, storage and transport conditions for Festo products
Standards in pneumatics
Compressed air preparation
Operating conditions for valves
Port designations of pneumatic components to ISO 5599
Operating conditions for drives
Pressure/force table and graphBuckling load graph
Air consumption
Pneumatics and explosion protection – ATEX
EC directives/approvals
Design – Clean room suitability
Paint-wetting impairment substances and resistance to media
Corrosion resistance class CRC
Protection classes according to IEC/EN 60529
Functional earth – protective earth – PELV
Spark arresting
Brochure
Folder for tubing and fittings combinations
Well combined: tubing/fitting combinations for all applications!
Brochure
Poster collection: Better connected
Everything from a single source – for the ideal tubing and fittings combinations
Poster
Automation with function integration
The pneumatic and electrical modules of the valve terminal CPX/MPA/VTSA
Poster
Megaposter: Tubing and fittings combinations
The complete world of tubing/fitting combinations
SizeStandard
Nominal size11 mm
Mounting positionoptional
DesignStraight design
Size of pack10
DesignPush-pull principle
Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
Operating pressure complete temperature range-0.95 bar ... 6 bar
Operating pressure complete temperature range-13.775 psi ... 87 psi
Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa
Temperature-dependent operating pressure-0.95 bar ... 14 bar
Temperature-dependent operating pressure-13.775 psi ... 203 psi
Note on operating pressureWater: max. 0.6 MPa at max. 50°C
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom classClass 4 according to ISO 14644-1
Ambient temperature-10 °C ... 80 °C
Product weight22 g
Pneumatic connection, port 1For tubing outer diameter of 12 mm
Pneumatic connection, port 2For tubing outer diameter of 12 mm
Colour of release ringBlue
Note on materialsRoHS-compliant
Material housingPBT
Material release ringPOM
Material tubing sealNBR
Material tubing clamp componentHigh-alloy stainless steel
