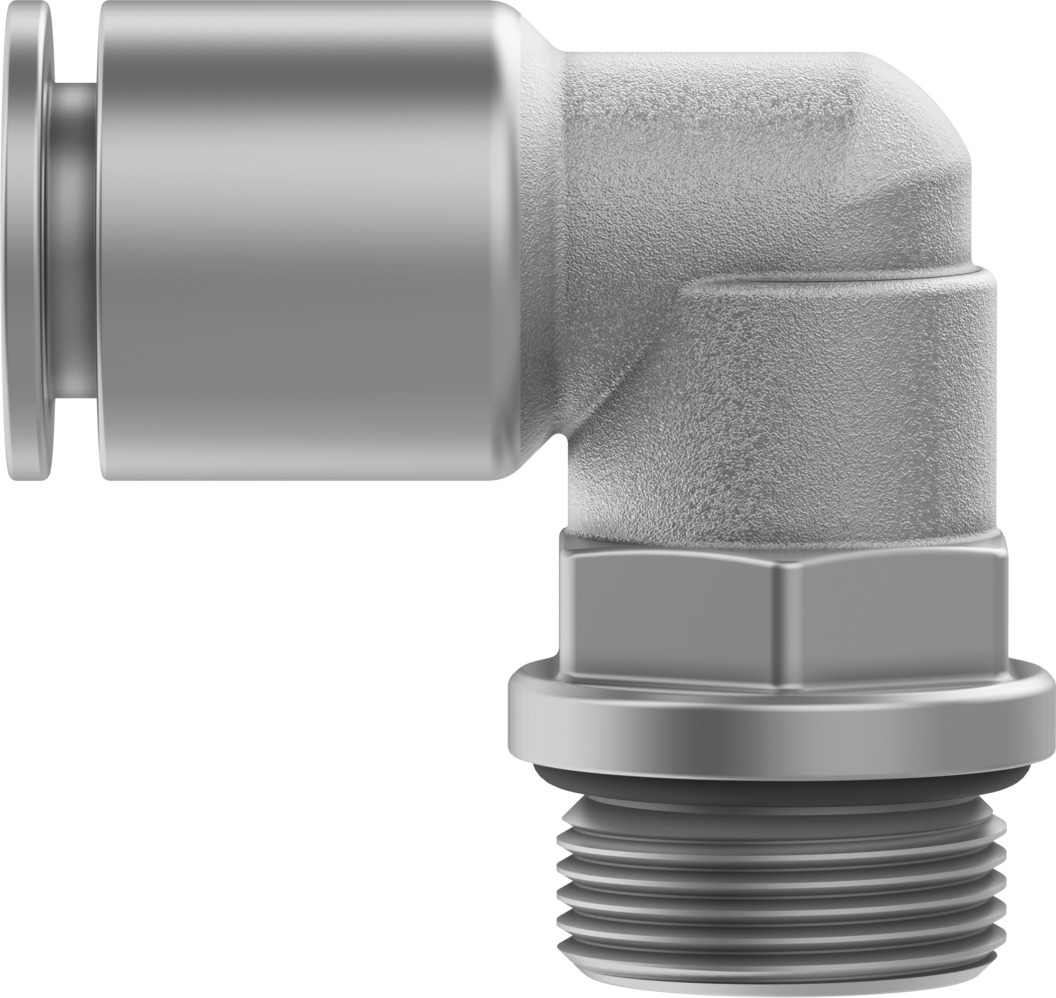

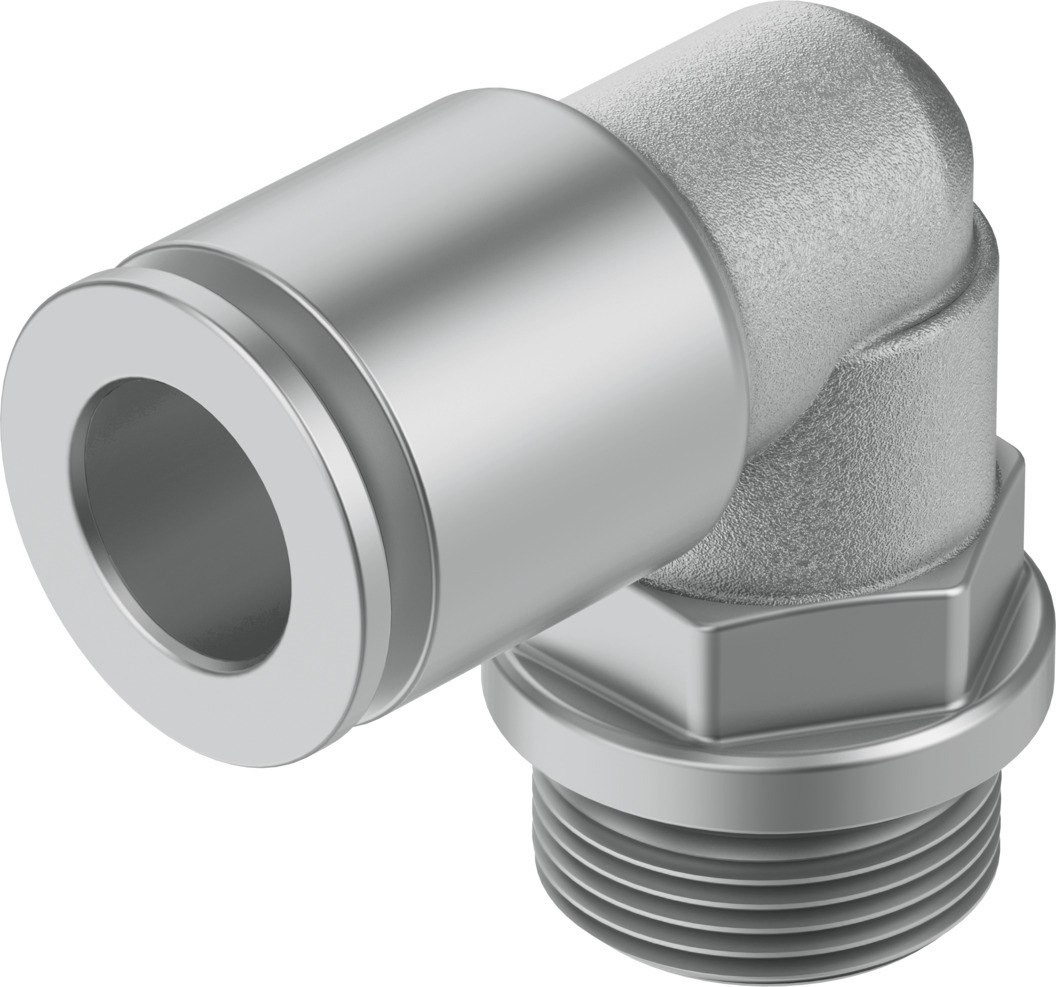

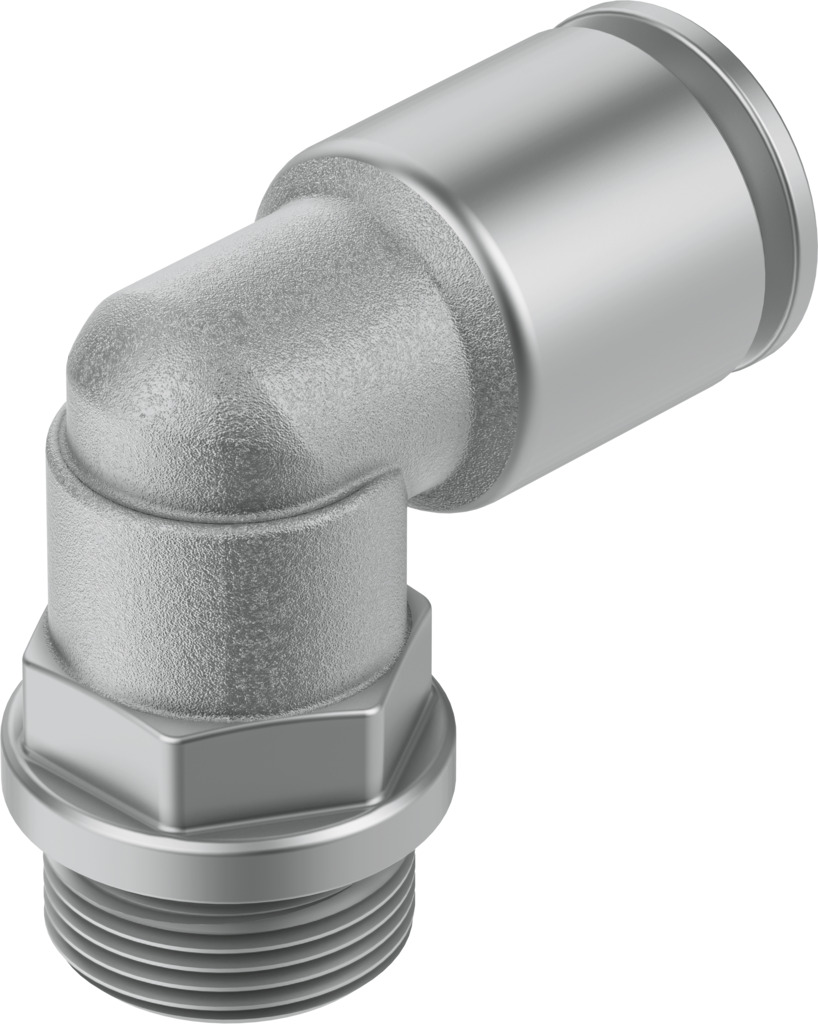

Push-in L-fitting NPQM-L-G14-Q8-P10
Push-in L-fitting
₹350.00
Pneumatic connection, port 1
Male thread G1/4
Pneumatic connection, port 2
For tubing outside diameter of 8 mm
Operating pressure complete temperature range
-0.95 bar - 16 bar
Ambient temperature
-20 °C - 70 °C
Nominal size
6 mm
Technical Data
SizeStandard
Nominal size6 mm
Type of seal on screwed plugSealing ring
DesignL-shape
Size of pack10
DesignPush-pull principle
Operating pressure complete temperature range-0.095 MPa ... 1.6 MPa
Operating pressure complete temperature range-0.95 bar ... 16 bar
Operating pressure complete temperature range-13.775 psi ... 232 psi
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-20 °C ... 70 °C
Nominal torque7.5 Nm
Tolerance for nominal tightening torque± 20%
Product weight25.3 g
Type of mountingExternal hexagon, A/F 13 mm
Pneumatic connection, port 1Male thread G1/4
Pneumatic connection, port 2For tubing outside diameter of 8 mm
Note on materialsRoHS-compliant
Material housingBrass, nickel-plated
Material tubing sealNBR
