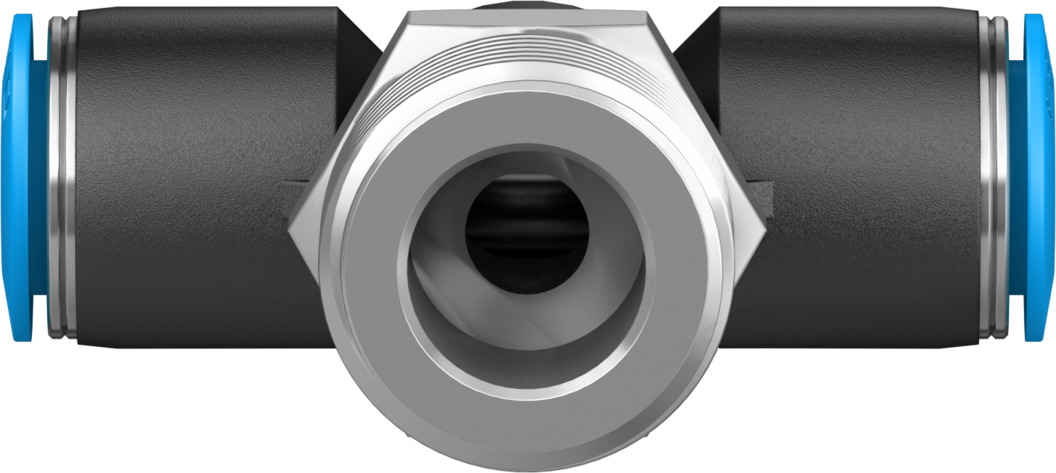

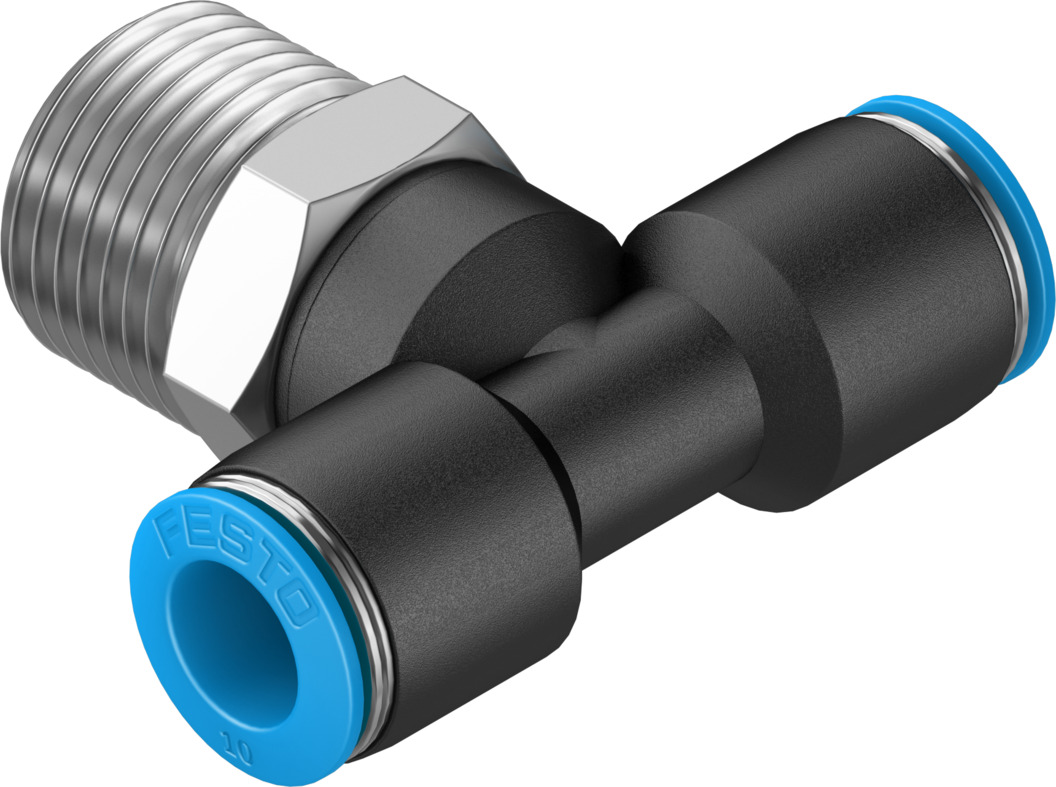

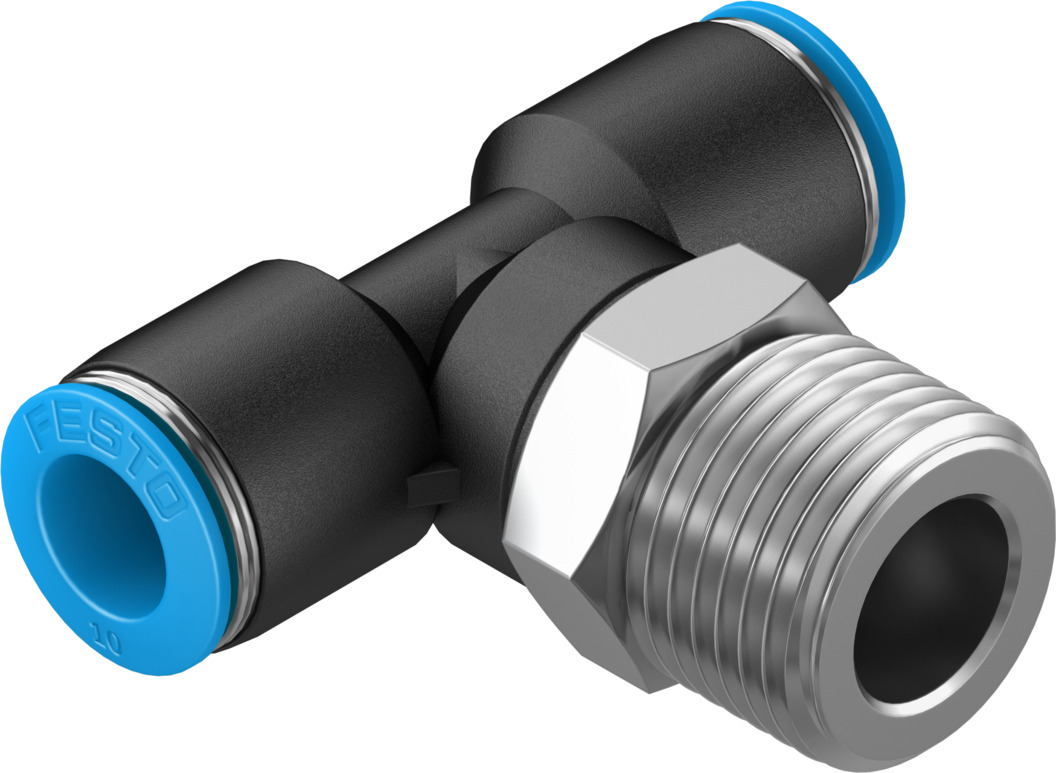

Push-in T-fitting QST-1/2-10
Push-in T-fitting
₹850.00
Technical Data
SizeStandard
Nominal size8.3 mm
Type of seal on screwed plugCoating
Mounting positionoptional
DesignT-shape
Size of pack1
DesignPush-pull principle
Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
Operating pressure complete temperature range-0.95 bar ... 6 bar
Operating pressure complete temperature range-13.775 psi ... 87 psi
Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa
Temperature-dependent operating pressure-0.95 bar ... 14 bar
Temperature-dependent operating pressure-13.775 psi ... 203 psi
Note on operating pressureWater: max. 0.6 MPa at max. 50°C
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom classClass 4 according to ISO 14644-1
Ambient temperature-10 °C ... 80 °C
Nominal torque26 Nm
Tolerance for nominal tightening torque± 20%
Product weight65 g
Number of outputs2
Number of supply lines1
Type of mountingExternal hexagon, size 21 mm
Pneumatic connection, port 1Male thread R1/2
Pneumatic connection, port 2For tubing outside diameter of 10 mm
Colour of release ringBlue
Material screwed plugNickel-plated brass
Note on materialsRoHS-compliant
Material housingPBT
Material release ringPOM
Material tubing sealNBR
Material tubing clamp componentHigh-alloy stainless steel
