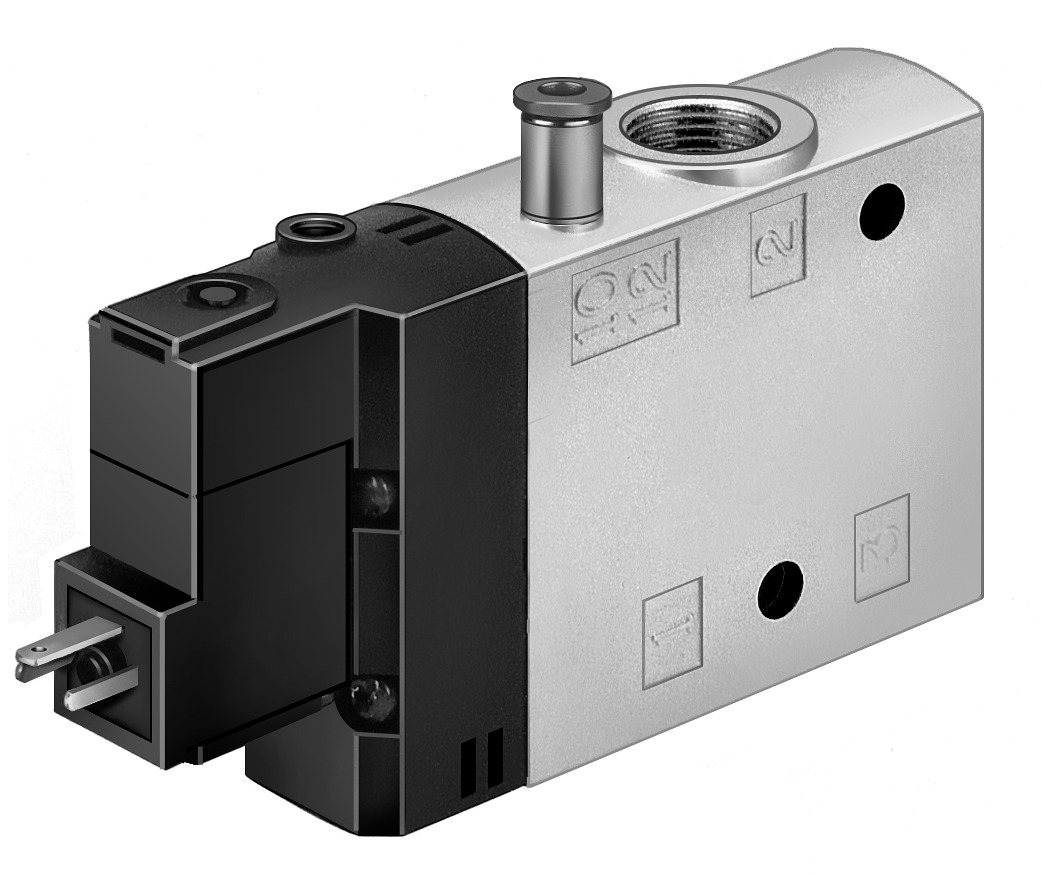

Valve function

3/2-way, closed, monostable

Standard nominal flow rate (standardised to DIN 1343)

2500 l/min

Pneumatic connection, port 1

G3/8

Type of actuation

Electric

Technical Data

• Valve function3/2-way, closed, monostable

• Type of actuationElectric

• Construction width24 mm

• Standard nominal flow rate (standardised to DIN 1343)2500 l/min

• pneumatic working portG3/8

• Operating voltage24V DC

• Operating pressure-0.09 MPa ... 1 MPa

• Operating pressure-0.9 bar ... 10 bar

• DesignPiston gate valve

• Type of resetPneumatic spring

• Approvalc UL us - Recognized (OL)

• Maritime classificationSee certificate

• Certificate issuing authorityDNV-TAA000032X UL MH19482

• Degree of protectionIP65 With plug socket To IEC 60529

• Nominal size11 mm

• Sealing principleSoft

• Mounting positionoptional

• Manual overrideDetenting via accessory Non-detenting

• Type of pilotingPilot actuated

• Pilot air supplyExternal

• Flow directionNon-reversible

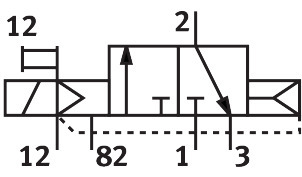

• Symbol00991405

• Valve position codeInscription label holder

• lapOverlap

• Pilot pressure0.25 MPa ... 1 MPa

• Pilot pressure2.5 bar ... 10 bar

• Switching time off33 ms

• Switching time on50 ms

• Duty cycle100%

• Max. positive test pulse with 0 signal3300 µs

• Max. negative test pulse with 1 signal3100 µs

• Characteristic coil data24 V DC: 1.5 W

• Permissible voltage fluctuations-15%/+10%

• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

• Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

• Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

• Corrosion resistance class CRC2 - Moderate corrosion stress

• LABS (PWIS) conformityVDMA24364-B1/B2-L

• Media temperature-5 °C ... 50 °C

• Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

• Ambient temperature-5 °C ... 50 °C

• Product weight220 g

• Electrical connectionType C

• Type of mountingWith through-hole

• Pilot exhaust port 82M5

• Pilot air port 12M5

• Pneumatic connection, port 1G3/8

• Pneumatic connection, port 2G3/8

• Pneumatic connection, port 3G3/8

• Note on materialsRoHS-compliant

• Material sealsNBR

• Material housingDie-cast aluminium
